Enigma I & Enigma II
Development board Awards User's manual Send us query

Hardware Crypto Module Securing Cloud Storages

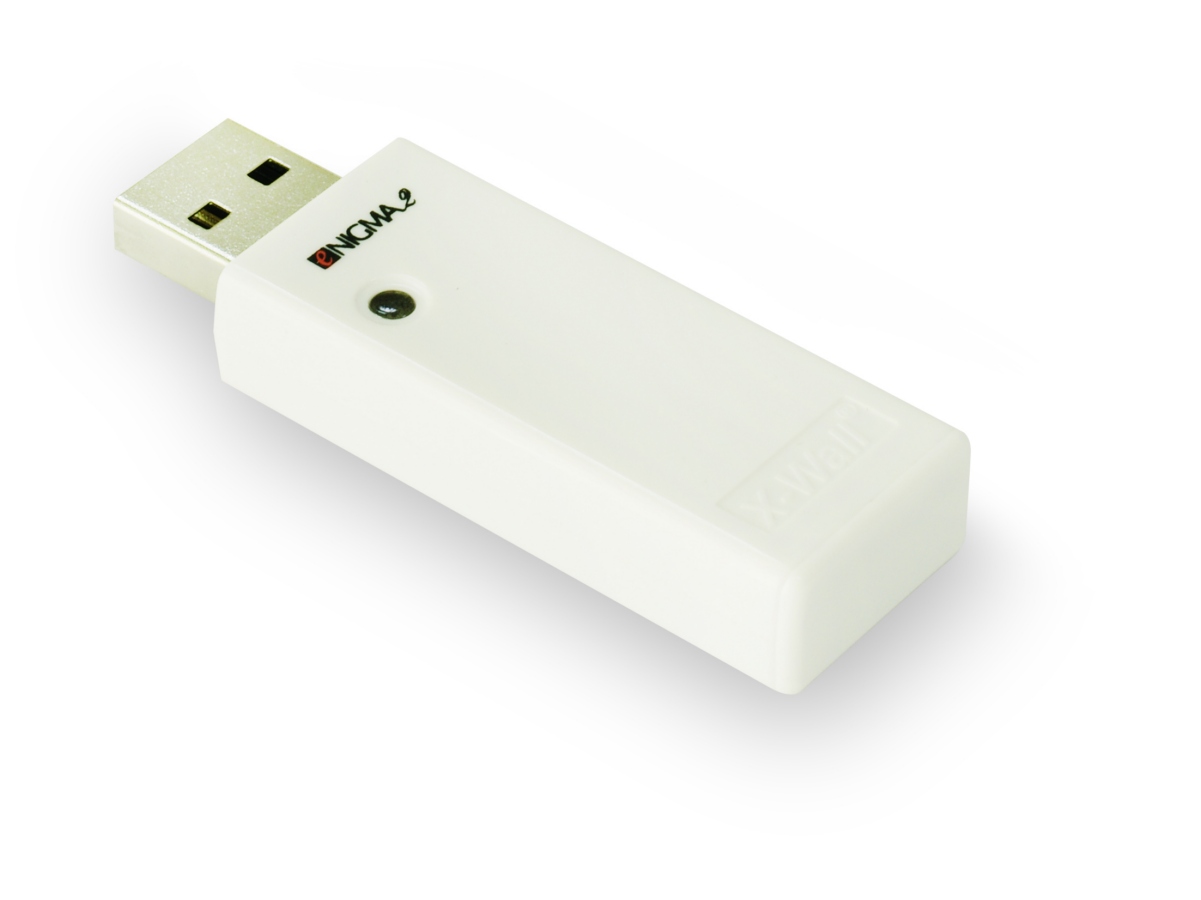

The Enigma II is a hardware crypto module (HCM) that encrypts existing drive in place and safeguards data confidentiality over Data-In-Transit (DIT) or Data-In-Motion (DIM). Enigma II HCM is capable of encrypting selective files and folders of any computer detectable storage devices including boot drive, external drive such as USB or 1394, network attached drive and virtual drives such as Windows OneDrive, Google's GoogleDrive and Macintoshi iCloud. With the Enigma II HCM, file/folder can be encrypted and decrypted. Without it, the encrypted file/folder remains encrypted. Enigma II HCM further allows the sharing of an encrypted file/folder for as long as the parties possess the same Data Encryption Key (DEK), which can be set through user's Recovery Password of an Enigma II HCM. Unlike its predecessor the Enigma that performs full disk encryption to ANY number of the attached USB Mass Storage Class (MSC) drive, the new Enigma II HCM is the best alternative to your software encryption, encrypting existing drive in place and sending the encrypted files/folders through public network with confidentiality. Only the recipient who has possessed the same keyed Enigma II HCM can successfully decrypt those received encrypted files and folders.

NIST Certified Real-time Hardware Crypto Engine

The cryptographic performance is performed by the NIST (National Institute of Standard and Technology) certified real-time hardware engine and the data encryption key remains in the HCM until the next power on cycle – the solution is secure and requires no additional user training. Enigma II HCM can encrypt files/folders of any number of those detectable drives through the provided software GUI of Windows and Macintosh. However, the Enigma II HCM is not engineered to perform real-time full disk encryption like its predecessors but the selective file/folder therefore one may experience slower performance while encrypting big file/folder (over 2GB per file/folder). For full disk encryption application, choose the Enigma I or other X-Wall based real-time crypto modules from

Key Features

- Enigma II HCM is a physical module interfacing with standard USB protocols
- Support 2- factor authentication
- Capable of encrypting existing data in place
- Capable of encrypting selective files/folders of any OS detectable storage drives, including boot drive, external drive such as USB or 1394, network attached storage and virtual drives such as OneDrive, GoogleDrive and iCloud etc.
- Secures data-in-transit (DIT) and/or Data-In-Motion (DIM); encrypted file can be sent through public network securely
- Allows sharing of encrypted file/folder
- Simple yet very effective key management
- Simple to use software GUI of Windows and Macintosh
- Compliance to any USB 1.0/1.1/2.0/3.0 MSC protocols
- Built-in 4GB flash for use as USB flash drive

Ordering Codes

Ordering Code (SKU) AES Mode of Operation Support Operation System
EMA-DX256E-4W ECB Windows
EMA-DX256C-4W CBC Windows
EMA-DX256E-4M ECB Windows + MAC
EMA-DX256C-4M CBC Windows + MAC

System Requirement

- USB/1/1/USB2.0/USB3.0 compliant
- Windows 8/7/Vista/XP and Mac OS, 32 or 64 bits
- All operating systems with USB1.1/2.0/3.0 support


- Jul. 15, 2013 new
San Jose, California, July 15, 2013 - Building on its heritage of expertise in hardware real-time encryption solutions, Enova Technology today announced the launch of the Enigma 2, a USB hardware crypto module (HCM) with NIST/CSE certified hardware AES ECB/CBC engine up to 256-bit strength. It is capable of encrypting existing data in place such as selective files and folders of any computer detectable storage devices including boot drive, external drive such as USB or 1394, network attached drive and virtual drives such as Dropbox, Windows OneDrive and Google's GoogleDrive. Read more..
