X-Wall DX

Resources

Datasheet FAQ Presentations Product Brief Utility White Papers Reports (Test Report, Compatibilty Report) Send us query Development board Awards

USB to USB crypto processor with AES 256-bit hardware encryption

The patents protected[1] X-Wall DX is a USB to USB real-time cryptographic module capable of encrypting entire USB portable drive including Blu-Ray DVD, DVD R/W, CD-R, thumb drive, disk, SSD, SD, CF, MMC, T-Flash & MS at USB2.0 wire speed with NIST/CSE certified hardware AES ECB/CBC 256-bit strength. The X-Wall DX safeguards content privacy via automatic and transparent encryption. The encryption content is invisible without presenting the right AES key. The X-Wall DX equips with complete USB2.0 protocol stacks that can be embedded onto a motherboard, a device, or acts as an independent ciphering dongle.

How does it work ?

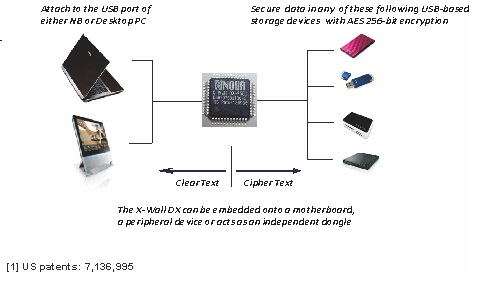

The X-Wall DX sits between the USB host and the USB device, encrypting before the data is ritten to the storage and decrypting while the data is read. The cryptographic operation is totally transparent to users thus produces no performance loss while all data-at-rest are hardware AES 256-bit encrypted. The Enova Secure Authentication (ESA) software responsible for authentication, is easy to use and requires no additional IT training.

-	Enables USB portable drive design based on SATA and solid state disk drive
-	Offers unprecedented 1.2Gbit/sec sustained hardware AES 256-bit cryptographic strength
-	Real-time AES performance guarantees no performance degradation
-	Single chip solution simplifies engineering design
-	Password enabled AES operations
-	Provides complete user friendly key management software

Hardware Features

-	NIST certified AES 256-bit hardware encryption
-	Support full disk encryption for all USB-based storage devices including thumb drive, disk, card reader and DVD/CD-R/Blu-Ray as long as they are USB based
-	Perform file/folder level encryption to all internal, external and cloud server drives
-	Support cipher/public disk partition with user and administrator password
-	Can be embedded onto a motherboard, a peripheral device or acts as an independent dongle
-	No measurable performance drop in read/write
-	USB2.0/3.0 compliant
-	48-pins LQFP package (7mm x 7mm)

Ordering Codes

Ordering Code (SKU)	AES Mode of Operation	Encryption Strength
X-Wall DX-256	ECB	256-bit
X-Wall DX-256C	CBC	256-bit

System Requirement

-	USB2.0/USB3.0 compliant
-	Windows 7/Vista/XP, Mac OS and Linux, 32 or 64 bits
-	All operating systems with USB1.1/2.0/3.0 support

News

-	Jan. 3th 2012 SAN JOSE, Calif. , July 11, 2011 – Enova Technology Corp., the real-time full disk encryption technology innovator, today announced its 9 th generation X-Wall DX processor, the 1 st true real-time hardware encryption processor for USB mass storage class devices. Read more...
